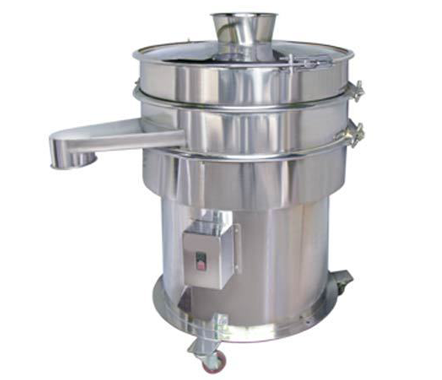

Vibro Sifter

We are the leading Vibro Sifter manufacturers in India. To meet the increasing demand for this task specific machinery, we have added it to our product line. For the purpose of maintaining the quality of powders and liquids, the use of vibro sifter has gone mainstream. They are also known as safety screeners, vibrating sifters, vibro sieves, check screeners or control sieves and are incredibly well suited for size based operation of multiple material.

We provide high end vibro sifter to the sectors engaged in direct productions of materials. As a vibro sifter manufacturer, we keep in mind the technical know-how and literacy of the workers. Therefore, we never make the operation of vibro mixer a complex battle. Staffs can easily operate the vibro mixer without any problem. We are a recognized name in the category of vibro sifter manufacturers in Ahmedabad. Get in touch with us to avail international quality compliance products at competitive rates.

Vibro Sifter SS-GMP/STD Model (SizeIn Inch--12/24/30/36/48/60) Available

Technical Specification
MODEL	SME-VB-12''	SME-VB-24''	SME-VB-30''	SME-VB-36''	SME-VB-48''	SME-VB-60"
Screens	SS 304(SS 316 Optional)	SS 304(SS 316 Optional)	SS 304(SS 316 Optional)	SS 304(SS 316 Optional)	SS 304(SS 316 Optional)	SS 304(SS 316 Optional)
Screen Dia.	300 mm.	600 mm.	750 mm.	900 mm.	1220 mm.	1510 mm.
Capacity /Hour*	20 To 100 Kg.	30 To 200 Kg.	30 to 300 Kg.	30 to 325 Kg.	40 to 410 Kg.	50 to 600 Kg.
Charging height	650mm with Lid	900+ 5 mm with Lid	950+ 5 mm withLid	950+ 5 mm with Lid	950+ 5 mm withLid	1150 + 5 mm with lid
Discharging height	400 + 5 mm	650+10 mm.	700+ 5 mm.	700+ 5 mm.	700+ 5 mm.	700+ 5 mm.
Electric Motor	0.25 HP / 1440 rpm/ 3 Ph.	0.5 HP / 1440 RPM / 3 Ph.	0.5 HP / 1440 RPM / 3 Ph.	0.5 HP / 1440 RPM / 3 Ph.	1.5 HP /1440 RPM 3 Ph.	3 HP / 1440 RPM / 3 Phase.
